Remote Worker
for netimate.com
-
Will be plugged into an PoE Switch. Scan and collect data from the customers IT landscape.
-
A Raspberry Compute Module 4 (CM4) is the computing heart of this product.
-
It’s equiped with an standard gigabit Ethernet PoE (802.3af) Port. The PS can deliver more power as the CM4 can consume.
Bottom side view
-
The labeling is part of the PCB. Because of the rectangular recess there is no need to label the case.
-
For the Status two LED’s lighten the word Activit and Power.
-
Currently the cases will be 3D Printed. But the design is already injection moulding ready.
Rear side view
-
The only plug ist the Gigabit Ethernet PoE port. The Remote Worker get all IP Information from your DHCP Server and connects to the netimate cloud automatically.
-
You need an 802.3af PoE Switch or a 802.3af PoE power supply.

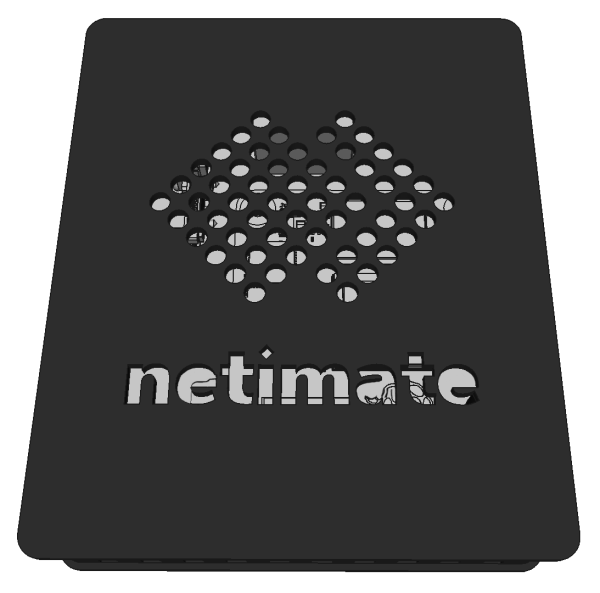

Top side view
-
The CI (corporate identity) elements are also ventilation holes. A good airflow is necessary because of the small case size.
-
L/W/H 142 x 100 x 33 mm
L/W/H 5,59 x 3,94 x 1,30 in
Weight 180 g or 0,397 lbs
